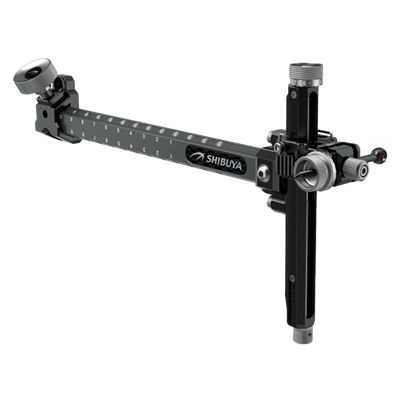

Shibuya Ultima RC IV
Next-generation precision for competitive recurve archers

The Shibuya Ultima RC IV marks a new chapter in the world's most trusted recurve target sight. Building on two decades of success, this latest model introduces finer micro-adjustments, improved mechanical stability, and enhanced maintainability. With Shibuya's smallest-ever click increment, a backlash-free ZPE system, and a redesigned quick-release pin stopper, the RC IV delivers uncompromising accuracy and intuitive operation for elite-level performance.

Key Features
Ultra-fine 0.04 mm micro-adjustment - for precise vertical and horizontal tuning
ZPE zero-backlash system - ensuring consistent, repeatable adjustments
Quick-release sight pin stopper - for fast, tool-free setup and repositioning
Specifications
Material
Elevation: 6000-series aluminium
Windage Unit: 6000-series aluminium
Extension: Carbon fiber
Mass Weight: 215 g
Aperture Distance (APD): 90-255 mm
Elevation
Adjustment Model: Screw drive with no-lock quick adjust
Length: 132 mm (approx. 5.2")
Adjustable Range: 107 mm
Adjustment Increments:
1/32" per revolution (approx. 0.8 mm)
1/640" per click (approx. 0.04 mm)
Windage
Adjustable Range: 5.4 mm
Adjustment Increments:
1/32" per revolution (approx. 0.8 mm)
1/640" per click (approx. 0.04 mm)
Extension Bar
Length: 233 mm (approx. 9")
Adjustable Range: 165 mm (approx. 6.5")
Adjustment Increments: 1/2" (approx. 12.7 mm)
Tilt Adjustment: Adjustable
Compatible Apertures: No. 8-32 threaded sight pins
Orientation: RH / LH
Included Accessories: Soft sight case, No.10-24 mount screws, 1.5 / 2.5 / 3 mm hex wrenches, blank sight tape
